HEINZMANN IFT - Experts for Filter Technology

Innovative Crankcase Ventilation Reinvented.

HEINZMANN IFT offers 1:1 exchange solutions and conversion packages for engines from well-known manufacturers. Due to series production, the most common models are available quickly and worldwide and are continuously adapted to current engine requirements.

Leaflet Genset Controls

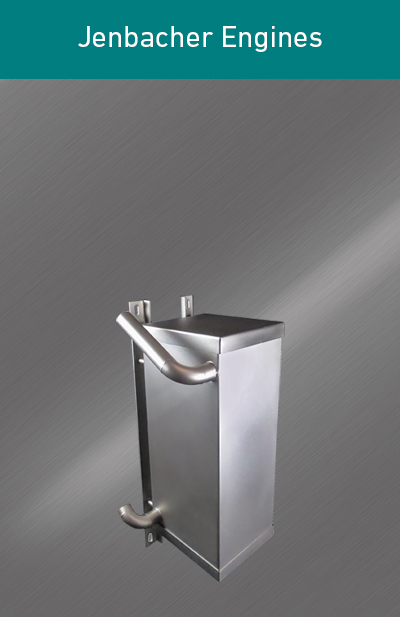

EXCHANGE MODELS FOR JENBACHER ENGINES

Suitable for V12, V16, V20

Series 3

400 kW - 1000 kW

  • Residual oil concentration
    max. 1 mg / m3
  • Separation rate
    > 99.9 %
  • Maintenance-free service life
    > 32.000 Bh
Various conversion kits available
Suitable for V12, V16, V20

Series 4

750 kW - 1500 kW

  • Residual oil concentration
    max. 1 mg / m3
  • Separation rate
    > 99.9 %
  • Maintenance-free service life
    > 32.000 Bh
Various conversion kits available
Suitable for V12, V16, V20
V24 on request

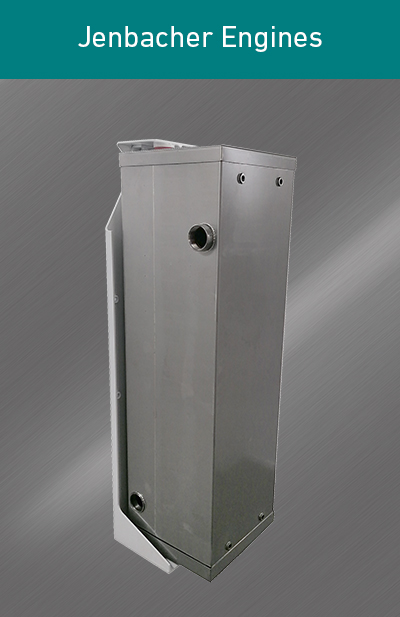

Series 6

2000 kW - 4500 kW

  • Residual oil concentration
    max. 1 mg / m3
  • Separation rate
    > 99.9 %
  • Maintenance-free service life
    > 32.000 Bh
Various conversion kits available

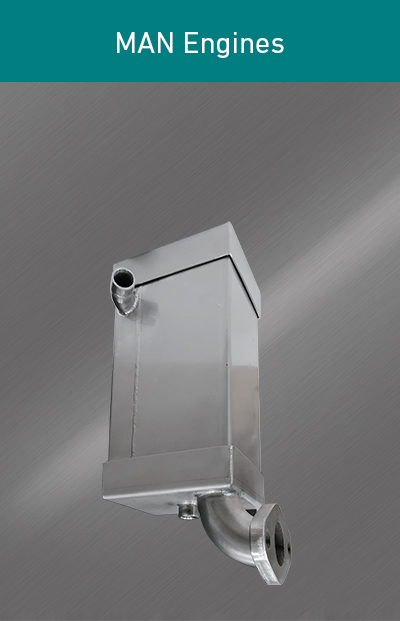

EXCHANGE MODELS FOR MWM AND MAN ENGINES

Suitable for V08, V12, V16

TCG 2016

400 kW - 800 kW

  • Residual oil concentration
    max. 1 mg / m3
  • Separation rate
    > 99.9 %
  • Maintenance-free service life
    > 32.000 Bh
Suitable for V12, V16, V20

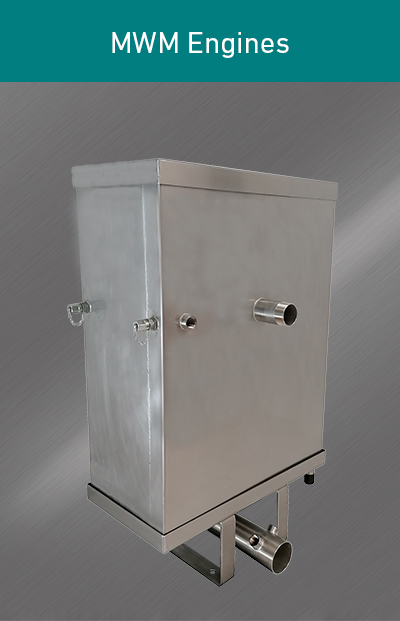

TCG 2020

1200 kW - 2000 kW

  • Residual oil concentration
    max. 1 mg / m3
  • Separation rate
    > 99.9 %
  • Maintenance-free service life
    > 32.000 Bh
Higher separation grade on request

E2876

220 kW

  • Residual oil concentration
    max. 15 mg / m3
  • Separation rate
    > 99.9 %
  • Maintenance-free service life
    > 32.000 Bh
